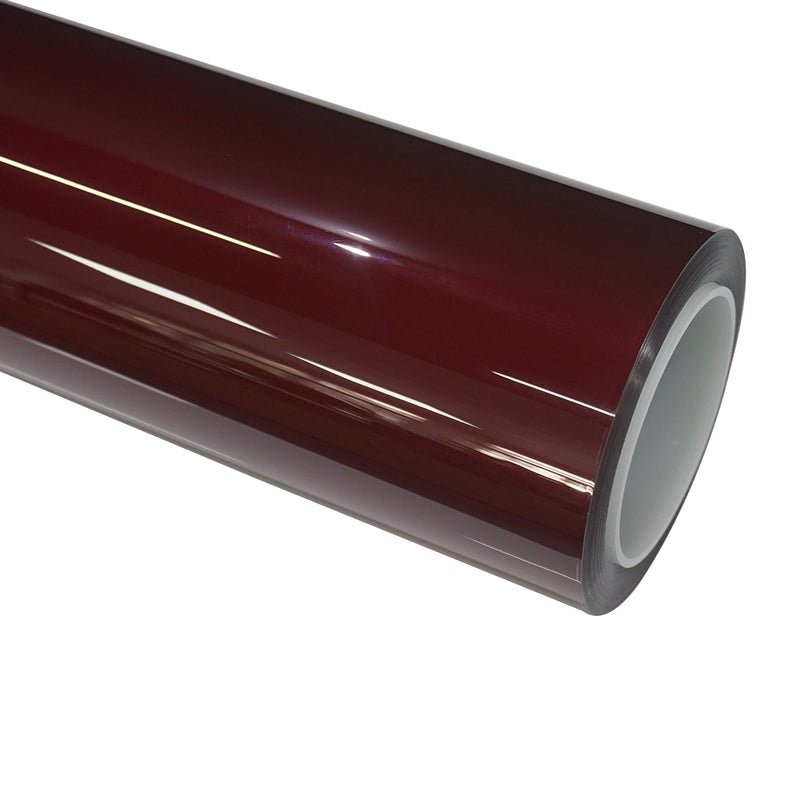

Dragon Red lands somewhere between a true racing red and a deep blood crimson, with enough warmth to glow in sun and enough depth to look almost black in shade. It reads bold without tipping into orange, the kind of red that makes a car look fast standing still. The gloss is wet and mirror clean, so reflections stay sharp and the panel looks freshly painted.
This is paint protection film, not vinyl. The same layer that gives you the color also takes the hits meant for your factory paint. Rock chips, road grit, light scratches, and bug acid land on the film instead of the clear coat underneath. You change the look of the car and guard the value of the paint in one install, and when you are ready for something else it peels off and leaves the original finish clean.
Key features
- Self-healing topcoat: minor scratches and swirl marks fade out with heat from the sun or a heat gun.
- Hydrophobic surface: water and dirt bead off instead of sticking, so the film stays cleaner for longer.
- Acid rain and oxidation resistant: holds up against acid rain, oxidation and yellowing over years of daily driving.
- Stain and penetration resistant: bird droppings, tree sap and grease do not soak into the film.
- Flexible and tear resistant: high elongation and tensile strength let it stretch over curves without cracking.
- Mirror-gloss finish: the glass-crystal top layer boosts paint depth and gloss by up to 40 percent and smooths out orange peel.
- Removable adhesive: peels off cleanly with heat, with no glue residue left behind.
- Bubble-free install: designed to lay flat without bubbling, warping or lifting at the edges.
The Wrapteck 3-layer TPU structure
Specifications
| Material | TPU (thermoplastic polyurethane) |
| Thickness | 7.5mil (330 ± 10µm) |
| Structure | 3 layers |
| Raw material | Lubrizol TPU resin |
| Adhesive | Ashland acrylic adhesive |
| Topcoat | Cashew-based coating |
| Application | Wet install |
| Roll width | 1.52m (5ft) |
| Roll lengths | 3m, 6m, 9m and 15m |
| Warranty | 8 years |
Lab test report
| Test | Result | Method |
|---|---|---|
| Thickness | 330 ± 10µm | Mitutoyo thickness meter |
| Elongation at break | 100N | ASTM D624-2000 |
| Puncture resistance | >15N | GB/T 10004 |
| Tensile strength | 25MPa | ASTM D638-2014 |
| Finished film elongation | >300% | ASTM D882 |
| Max operating temperature | 100°C to 120°C | GB/T 7141-2008 |
| Anti-yellowing | B value <5 | GB/T 16422.3-2014, QUV 5000 hours |
| Adhesive hold strength | >2200g | GB/T 4851 |
| UV resistance | 95% to 98% blocked | GB/T 2680 |
| Gloss level | 95GU | 3NH gloss meter, 60 degree |
New to wrapping?
If this is your first film, start with our guide on how to wrap a car. This is a wet-install film, so you can do panels and accents at home, and a professional installer is the safest route for a full-car wrap.
| Specification name | Specification Value |
|---|---|
| Color pattern | Red |
| Decoration material | Vinyl, TPU |
| Vehicle application area | Exterior, Vinyl |
| Vehicle decor features | Scratch resistant, UV resistant, Waterproof, Heat resistant, Easy to apply, Self Healing, Sand Proof, Removable, Stretchable |
| Vehicle type | Car, Golf cart, Recreational vehicle, Watercraft, Van, Truck, SUV, Motorcycle, Mirco, Hatch, Convertible, Coupe, Sedan, Pickck Truck |
