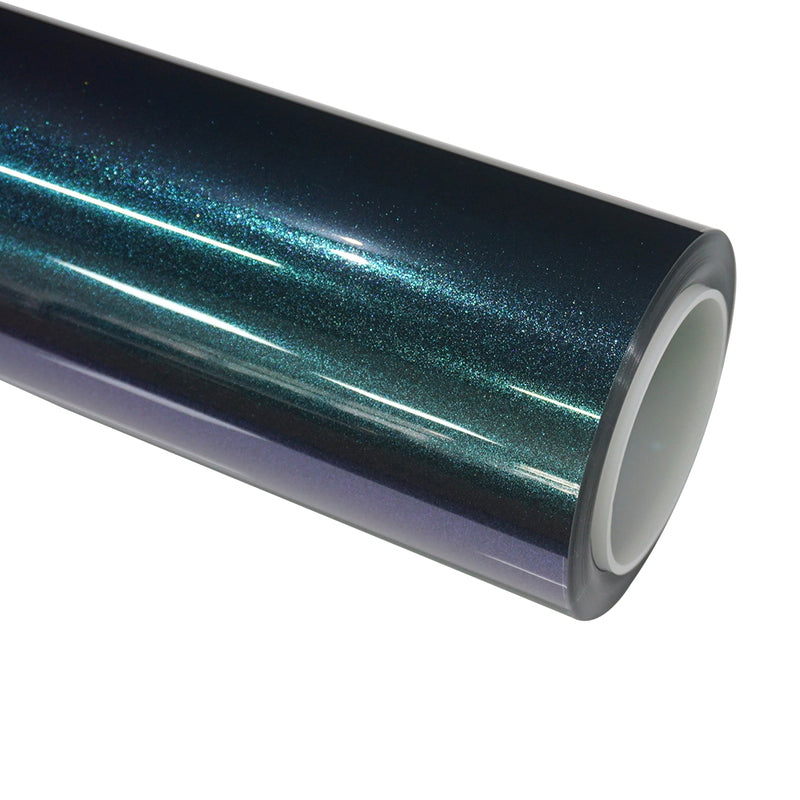

Diamond Aurora Green is a deep green with a diamond sparkle and a light aurora shift, so the color shimmers and changes as you move around the car or as the sun moves across it. Parked it reads as a rich jewel green. Rolling under streetlights it catches a cooler aurora flash that flat paint and ordinary wraps simply cannot do.
The look is only half the job. This is color paint protection film, not vinyl. The same 7.5mil TPU that carries the Aurora Green tint sits over your factory paint and takes the hits for it, so rock chips, road grit, light scratches and bug acid land on the film instead of your clear coat. You change the color of your car and shield the paint underneath in one layer.
Key features
- Self-healing topcoat: minor scratches and swirl marks fade out with heat from the sun or a heat gun.
- Hydrophobic surface: water and dirt bead off instead of sticking, so the film stays cleaner for longer.
- Acid rain and oxidation resistant: holds up against acid rain, oxidation and yellowing over years of daily driving.
- Stain and penetration resistant: bird droppings, tree sap and grease do not soak into the film.
- Flexible and tear resistant: high elongation and tensile strength let it stretch over curves without cracking.
- Mirror-gloss finish: the glass-crystal top layer boosts paint depth and gloss by up to 40 percent and smooths out orange peel.
- Removable adhesive: peels off cleanly with heat, with no glue residue left behind.
- Bubble-free install: designed to lay flat without bubbling, warping or lifting at the edges.
The Wrapteck 3-layer TPU structure
Specifications
| Material | TPU (thermoplastic polyurethane) |
| Thickness | 7.5mil (330 ± 10µm) |
| Structure | 3 layers |
| Raw material | Lubrizol TPU resin |
| Adhesive | Ashland acrylic adhesive |
| Topcoat | Cashew-based coating |
| Application | Wet install |
| Roll width | 1.52m (5ft) |
| Roll lengths | 3m, 6m, 9m and 15m |
| Warranty | 8 years |
Lab test report
| Test | Result | Method |
|---|---|---|
| Thickness | 330 ± 10µm | Mitutoyo thickness meter |
| Elongation at break | 100N | ASTM D624-2000 |
| Puncture resistance | >15N | GB/T 10004 |
| Tensile strength | 25MPa | ASTM D638-2014 |
| Finished film elongation | >300% | ASTM D882 |
| Max operating temperature | 100°C to 120°C | GB/T 7141-2008 |
| Anti-yellowing | B value <5 | GB/T 16422.3-2014, QUV 5000 hours |
| Adhesive hold strength | >2200g | GB/T 4851 |
| UV resistance | 95% to 98% blocked | GB/T 2680 |
| Gloss level | 95GU | 3NH gloss meter, 60 degree |
New to wrapping?
If this is your first film, start with our guide on how to wrap a car. This is a wet-install film, so you can do panels and accents at home, and a professional installer is the safest route for a full-car wrap.
| Specification name | Specification Value |
|---|---|
| Color pattern | Red |
| Decoration material | Vinyl, TPU |
| Vehicle application area | Exterior, Vinyl |
| Vehicle decor features | Scratch resistant, UV resistant, Waterproof, Heat resistant, Easy to apply, Self Healing, Sand Proof, Removable, Stretchable |
| Vehicle type | Car, Golf cart, Recreational vehicle, Watercraft, Van, Truck, SUV, Motorcycle, Mirco, Hatch, Convertible, Coupe, Sedan, Pickck Truck |
